Directionality-Aware Design of Embroidery Patterns
Computer Graphics Forum (Eurographics 2023)
🪡 Transform images to beautiful patterns ready for an embroidery machine to sew

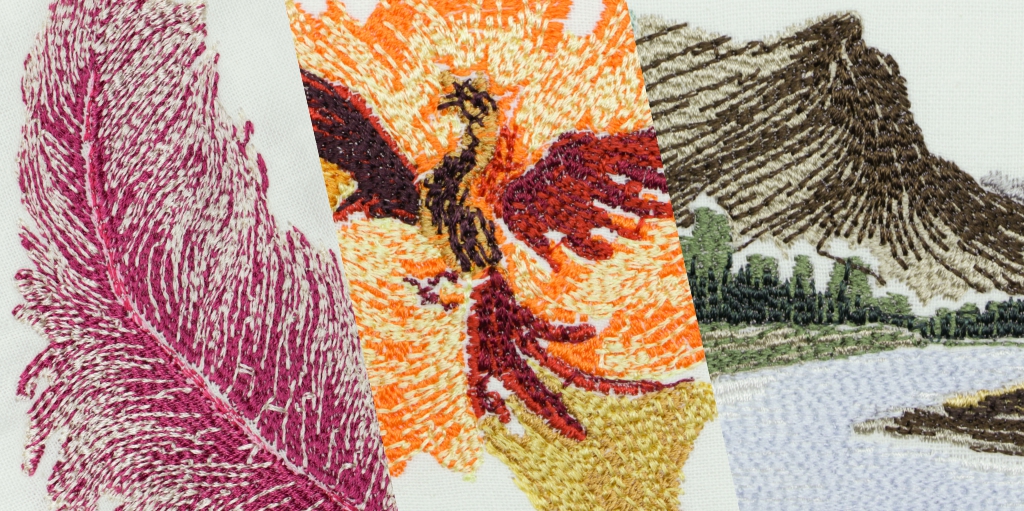

Photos of embroidery patterns generated using our method stitched on ivory cloth. See our paper for examples!
Abstract
Embroidery is a long-standing and high-quality way of making logos and images on textiles. Nowadays, it can also be performed via automated machines that weave threads with high spatial accuracy. A characteristic feature of threads’ appearance is a high degree of anisotropy. The anisotropic behavior is caused by depositing thin but long strings of thread. As a result, the stitched patterns convey both color and direction. Artists leverage this anisotropic behavior to enhance pure color images with textures, illusions of motion, or depth cues. However, designing colorful embroidery patterns with prescribed directionality is a challenging task, usually requiring an expert designer. In this work, we propose an interactive algorithm that generates machine-fabricable embroidery patterns from multi-chromatic images equipped with user-specified directionality fields. We cast the problem of finding a stitching pattern into vector theory. To find a suitable stitching pattern, we extract sources and sinks from the divergence field of the vector field extracted from the input and use them to trace streamlines. We further optimize the streamlines to guarantee a smooth and connected stitching pattern. The generated patterns approximate the color distribution constrained by the directionality field. To allow further artistic control, the trade-off between color match and directionality match can be interactively explored via an intuitive slider. We showcase our approach by fabricating several embroidery paths.
7-Min Quick Walk-Through
Highlight: Beautiful Embroidery Patterns

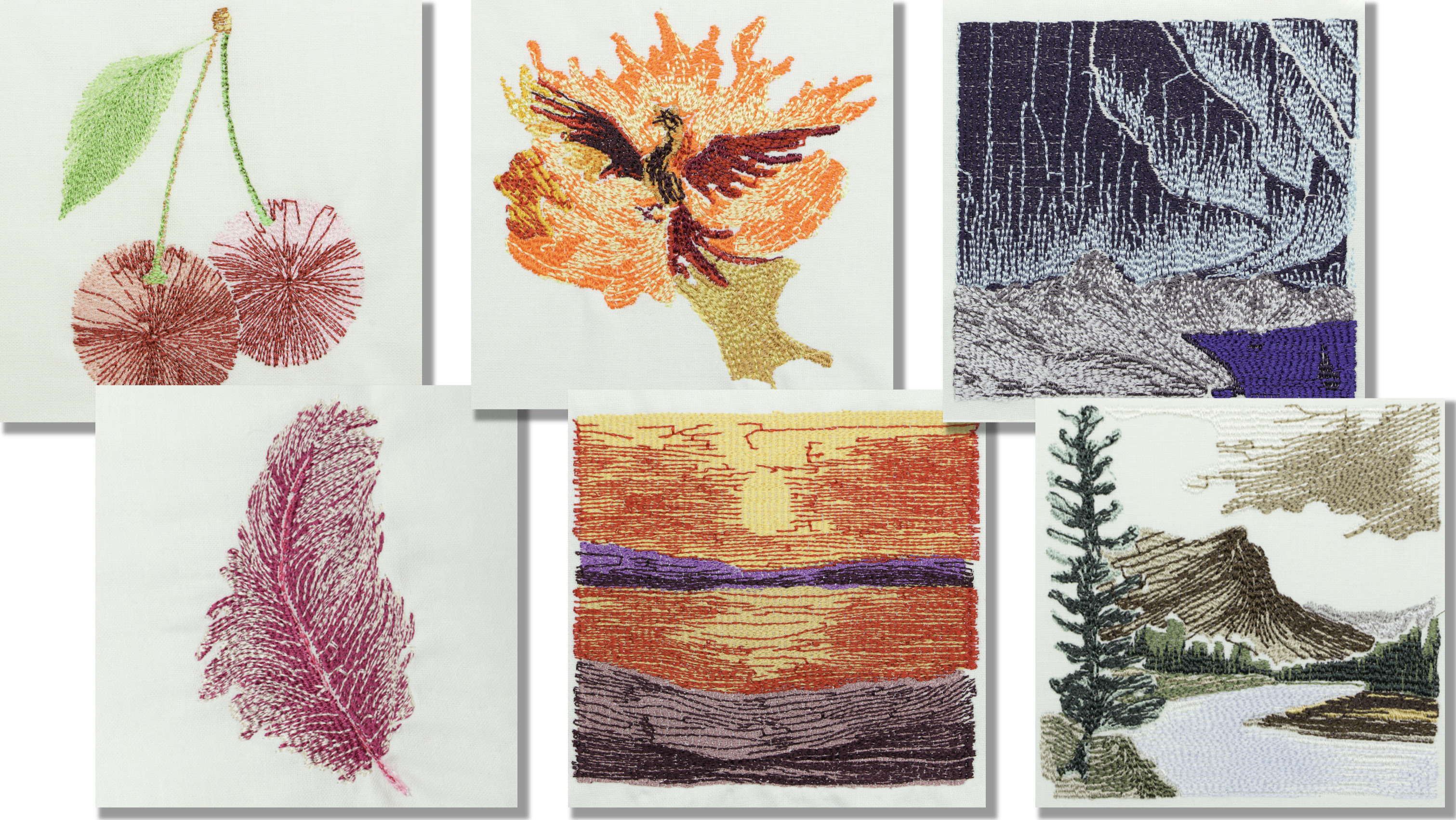

More photos of our embroidery prototypes.
Highlight: Density/Directionality Control of Streamlines
In general, density and direction fields are hard to be approximated perfectly by streamlines.
Interactive preview of the streamlines for users to explore the tradeoff between density and directionality.
Resources
Publisher Page (open access under CC BY-NC-ND 4.0)
Cite Us
@article{zhenyuan2023embroidery,
journal = {Computer Graphics Forum},
title = {Directionality-Aware Design of Embroidery Patterns},
author = {Zhenyuan, Liu and Piovar\u{c}i, Michal and Hafner, Christian and Charrondi\`{e}re, Rapha\"{e}l and Bickel, Bernd},
doi = {10.1111/cgf.14770},
year = {2023},
volume = {42},
number = {2},
publisher = {The Eurographics Association and John Wiley & Sons Ltd.},
}
