HiGS: Inverse Radiative Transport for Infrared Scenes with Gaussian Primitives

SIGGRAPH Asia 2025 Conference Papers
Liu Zhenyuan
ETH Zurich, Switzerland
Bharath Seshadri
ETH Zurich, Switzerland
George Kopanas
Runway ML, United Kingdom
Bernd Bickel
ETH Zurich, Switzerland

☀️ Warm up Bunny with hemicubes and Gaussian splats from thermal images

HiGS takes input as thermal images of the same scene at different temperature conditions, infers thermal transport properties, and separate the reflection from the total radiation observed from the camera. It further enables re-heating: re-position the radiator and change its temperature and emissivity, and predict the reflections under the new heating condition.

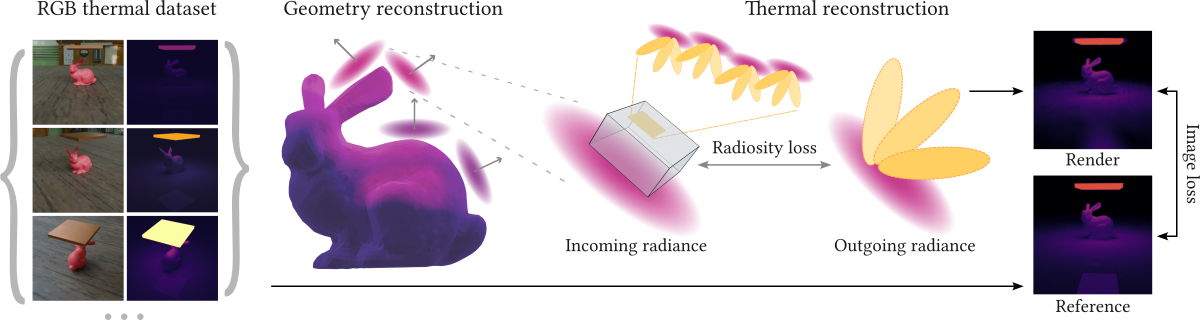

Overview: hemicube + radiosity + radiance cache

HiGS first reconstructs a set of 2D Gaussian primitives that represent the geometry of the scene. Then, we compute the incoming radiance at each Gaussian primitive by rasterizing other primitives using hemicubes, and represent the outgoing radiance using Spherical Gaussian (SG) basis. The outgoing radiance and thermal properties are supervised by the image loss between the reference images and renderings, and a radiosity loss that promotes the separation of reflections.

HiGS first reconstructs a set of 2D Gaussian primitives that represent the geometry of the scene. Then, we compute the incoming radiance at each Gaussian primitive by rasterizing other primitives using hemicubes, and represent the outgoing radiance using Spherical Gaussian (SG) basis. The outgoing radiance and thermal properties are supervised by the image loss between the reference images and renderings, and a radiosity loss that promotes the separation of reflections.

Results

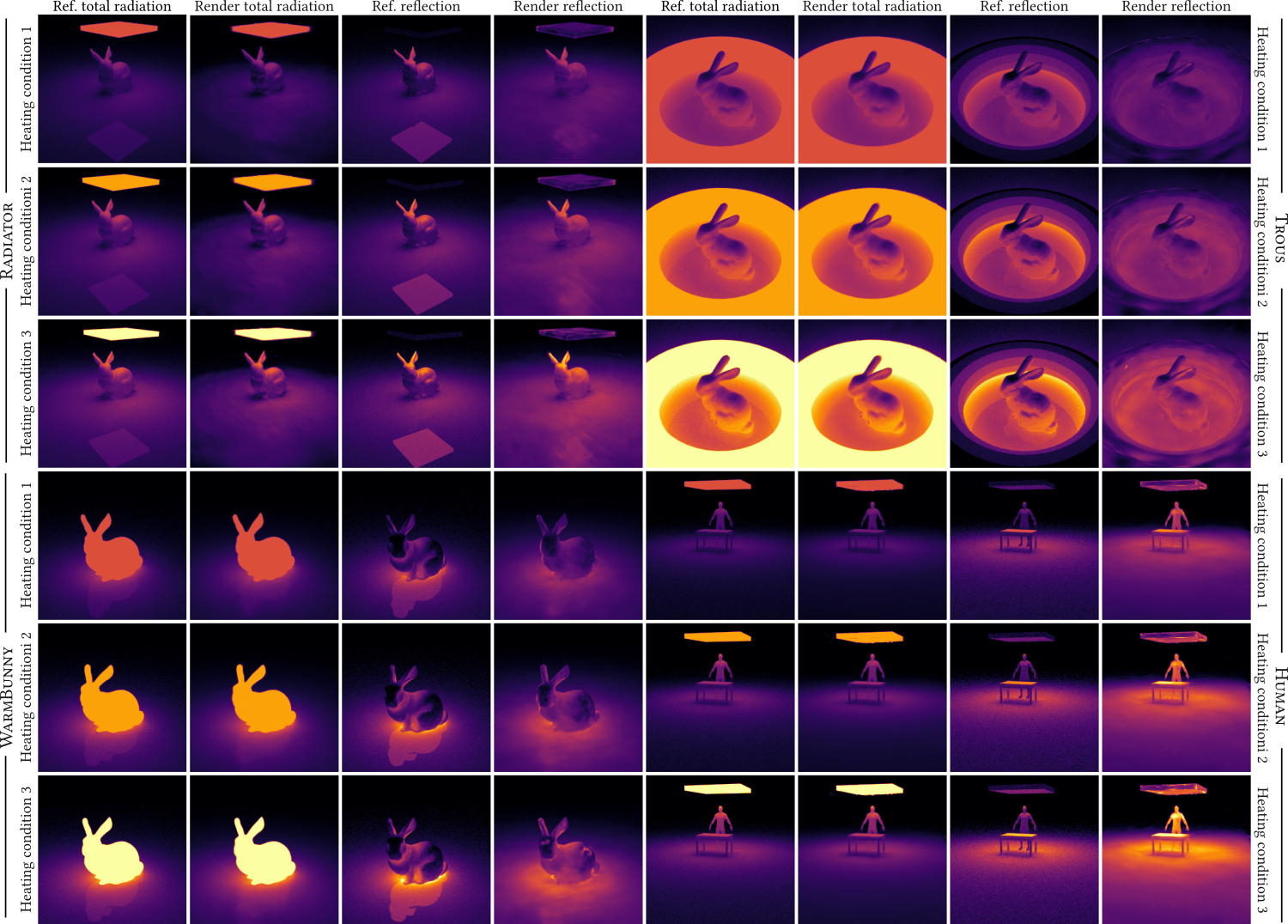

We validate our method on synthetic dataset. We show reference/rendered total radiation and reflection.

We validate our method on synthetic dataset. We show reference/rendered total radiation and reflection.

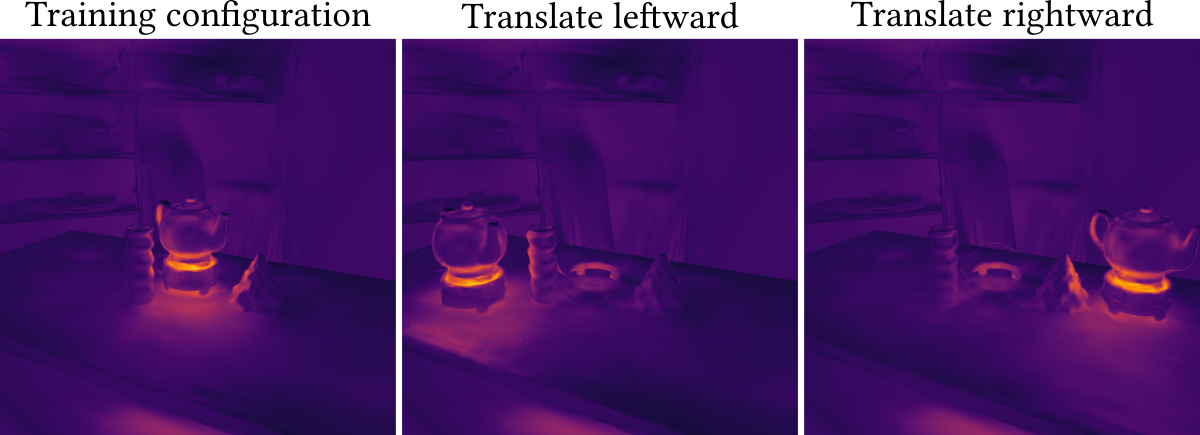

Our method is also tested on real capture data. We move the heated teapot and predict its reflection in the new positions.

Our method is also tested on real capture data. We move the heated teapot and predict its reflection in the new positions.

Acknowledgments

Bharath Seshadri’s position is funded by the Albert Lück Stiftung via the ETH Zürich Foundation for the project “Extended Reality for Inspection, Assembly, Operations for net-zero carbon infrastructure” The authors thank the anonymous reviewers for their valuable feedback; Dominik Stoll for his help with the figures; Jeremy Chew for many insightful discussions; Stanford University Computer Graphics Laboratory for the Stanford Bunny model.

Citation

@inproceedings{zhenyuan2025higs,
  title = {{Inverse Radiative Transport for Infrared Scenes with Gaussian Primitives}},
  booktitle = {ACM} {SIGGRAPH Asia} 2025 {Conference} {Proceedings},
  author = {Zhenyuan, Liu and Seshadri, Bharath and Kopanas, George and Bickel, Bernd},
  year = {2025},
  month = dec,
  doi = {10.1145/3757377.3763938},
}
